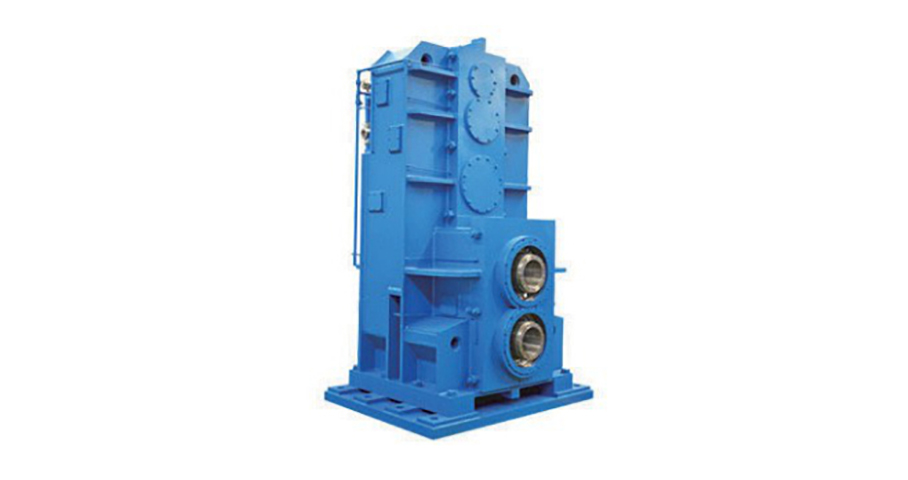

(1)Main Driving Gear Box for Wire and Bar Mills.
Characteristics:Compact design structure,Low noise,Great housing stability,High reliability by using forced lubrication to bearings, and transmission efficiency
Main Technical Parameters: Mid-Range of Output Shaft: up to 1,100 mm, Speed Ratio: up to 120,Torque: up to 1,200 kN.m
Applications: Applied to the large, medium and small bar production lines; to the wire and high-speed wire production lines; and to the partial sectional steel production lines.
(2)Main Driving Gear Box for hot Rolling Mills.
Characteristics: Optimized flank modification technology, High housing rigidity,Large torque transmission,Weight reduction by gear hardening
Main Technical Parameters: Rated Power: max. 12,000 kW,Transmission Stages: 1 or 2,Speed Ratio: 1–10, Torque: max. 4,200 kN.m
Applications:Applied to the production lines of continuous hot rolling and continuous plate casting and rolling
（3）Main Driving Gear Box for Cold Rolling Mills
Characteristics: Optimized flank modification technology,Optimized body rigidity,High gear precision and transmission efficiency,Low noise; low vibration; smooth transmission
Main Technical Parameters:Rated Power: max. 7,500 kW,Transmission Stages: 2 or 3,Speed Ratio: 0.8–6.8,Torque: max. 700 kN.m
Applications:Production of cold plate rolling and reversible cold plate rolling .
